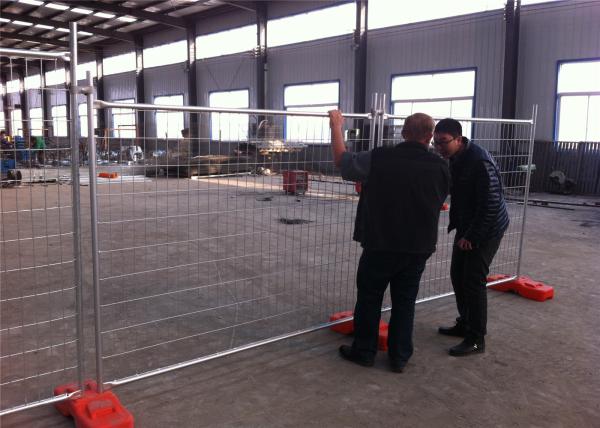

Galvanized Temp Fence Panels 2.1m*2.4m Outer dia pipe 40mm*1.5mm Mesh 75mm*150mm Dia 3.50mm

Temporary Fencing for Security, Construction, or Crowd Control Attractive and Sturdy Barricade Fence Panels

Specifications:

Panel sizes:2400mm(length)×2100mm(height)
Wire diameter:2.5mm-5mm
Spacing: 60mm(L)×150(H)
Galvanized tube:outer diameter 32mm
Finish treatment: Hot-dip galvanized, plastic coated. In general, hot-dip galvanized treatment is widely used.

Plastic concrete feet:

The plastic box is filled with concrete to make sure more stable. They are easier to see which makes them safer as they are less likely to be a tripping hazard for the public. The common size is 570mm×245mm×130mm(L×W×H).

temporary fencing clamp we supplied are design by Australia for a long term at least a 5 years repeating jobs ,all of clamp are use high tensile steel punched then put in zinc bath for a minimum 42 microns zinc layer and 4.00mm thickness clamp steel better than you saw in the market per pair at a least 0.40kg.

• Options of Temporary Fencing Clamp

Temporary Fencing Clamp-100TYPE
	Thickness	4.00mm
	Center distance	100mm ( pipes center to center) /OVERALL LENGTH120MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.45kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-90TYPE
	Thickness	4.00mm
	Center distance	90mm ( pipes center to center) /OVERALL LENGTH 110MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.40kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-80TYPE
	Thickness	4.00mm
	Center distance	80mm ( pipes center to center) /OVERALL LENGTH 100MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.35kg /set 2 pairs included big caps bolt and nuts

Temporary Fence Brace /Stay
	Height :1825mm Frame :OD 32 x 2.00mm Steel Block Thick :8.00mm Width :63mm Length :290mm The upright pipes weld onto steel plate Length :360mm Bottom bend pipes from the ground level 450mm Finish :Hot Dipped Galvanized 14 microns ,42 microns ,84 microns

Temporary Fence HandRails

Frame OD 32 x 2.00m strong pipes Length 2400mm to suit 2100mm x 2400mm temporary fence panels Height 400mm Weight :5.00kg Materials Q 235 Treated Hot dipped Galvanized 14 microns ,42microns as well 84 microns Standard AS4687-2007 Included 4 set clamp system to secured with temporary fencing panels Reduce the possibility of construction accidents handrails provided pedestrian with extra support,they are easy to installed onto temporary fencing panels through temporary fencing clamp system.

Temporary Fence Gates
	Pedestrian Gates Frame pipes OD 32 x 2.00mm Mesh Opening :60mm x 150mm Diameter :4.00mm Hot dipped galvanized to be 14 microns ,42 microns ,84 microns Accessories chain pad locking and coupler hinged as clips foot Panels size 2100mm x 1000mm width 1 pieces Standard AS4687-2007
	Vehicle gates Frame pipes OD 32 x 2.00mm Mesh Opening :60mm x 150mm Diameter :4.00mm Hot dipped galvanized to be 14 microns ,42 microns ,84 microns Accessories chain pad locking and coupler hinged as clips foot Panels size 2100mm x 1000mm width 1 pieces Standard AS4687-2007

Temporary Fencing Shade Cloth

30% ,50%,70% Density Shade cloth Rolls Size :1.83m x 50m or 2.0m x 50m standard Highest UV 5 treated Available any color When ordering your shade cloth make sure you have all the right accessories to get the job done. These include; UV stabilised cable ties Butterfly clips Hog rings and Hog ring pliers Shade cloth cutter Hold-on Midi clips Compare the various grades of Scaf & Fence mesh below. The 30% is very open knit, the 50% is a more tightly knitted fabric and the 70% is very tightly knitted.

Top Fence co focused on manufacturing premium temporary fencing kit at a cost efficient rate covered with temporary fencing panels HDPE foot as well clamp system ,temporary fencing bracket ,temporary fencing gates etc, Annual we manufactured at least 50000 piece temporary fencing sold well in australia market such as brisbane ,Melbourne ,Perth ,Fremental .The products we manufactured adopt to AS 4687-2007 Standard Required .For sake of saving laborforce cost we imported welding robots from germany to eliminate the procedure not necessary to operate by workers so enable us always can pass a competitive rate .We serve more than 200 client in Australia ,among of them there are 20 regular long term clients what we achieved is casue we build complete after sale service and quality control system,our inspectors are through yearly professional training who help us to win a good repuation in local Australia .Top Fence take customers accurate requirements of market as key point of mutual profit and business success.Adquate market investigation made us to reserach and develop the temporary fencing to meet any group client requirments such as Standard Temporary Fence Classfied 14 microns /42 microns zinc layer ,Economic Temporary Fence etc
