Constructio Fence Panels chain mesh&Weld Mesh 2.1m*2.4m OD32mm tubing x 2.0mm thick Mesh 60*150*4.00mm Pregal 14 microns

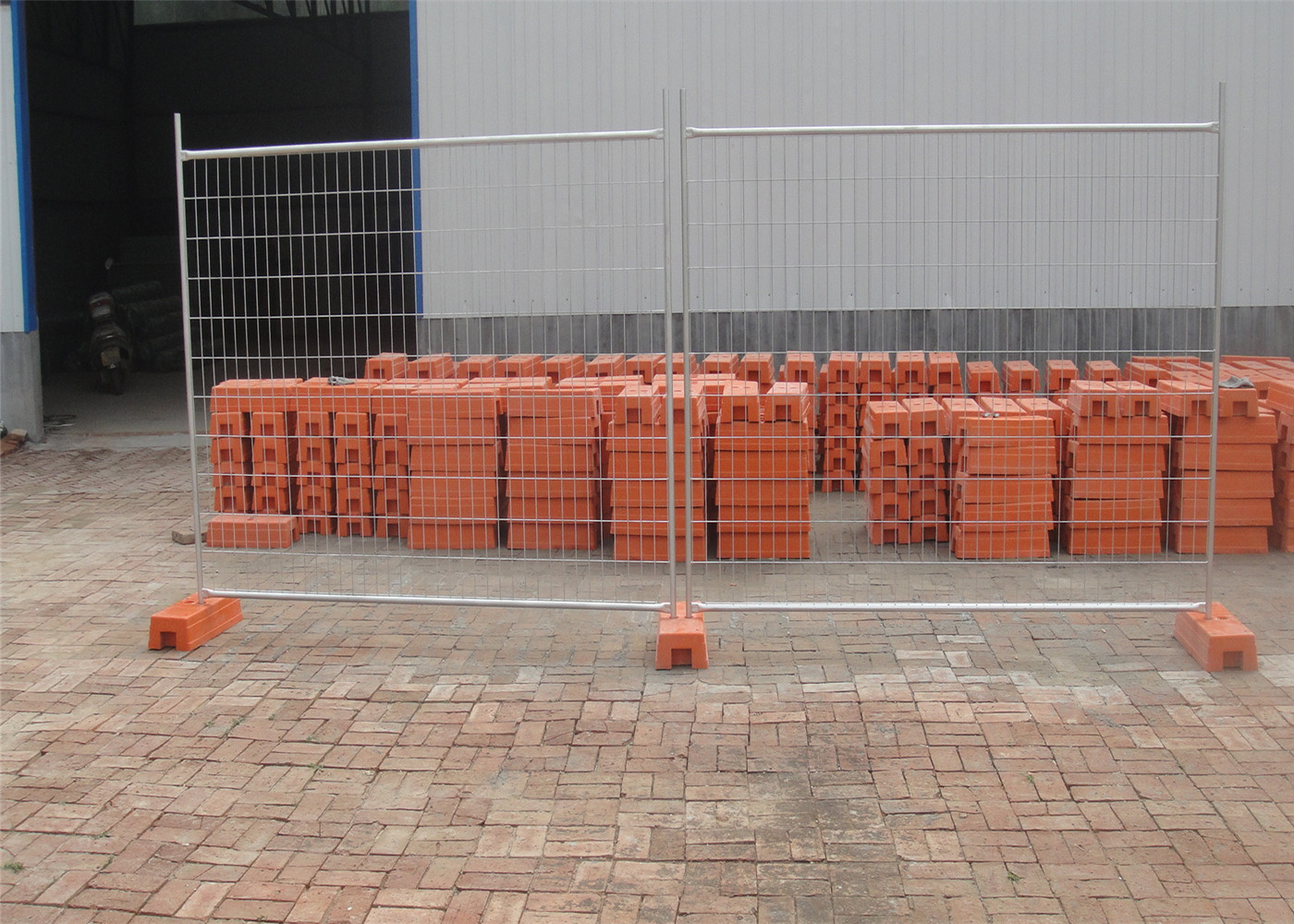

The temporary fence panels usually stand 2100mm high and 2400mm wide. These panels and mesh are hand welded with superior quality 4.0mm mild steel wire for optimum strength and are hot dipped galvanized for durability.

The temporary fence panels comply with Australian Standard AS 4687-2007, when used in conjunction with temporary fence plastic feet (infilled with concrete) and clamps.

• Hand welded joins

• Hot dipped galvanized

• Australian Standard AS 4687-2007

Applicable sites:

• Commercial Construction Sites

• Domestic Housing Sites

• Pool construction

• Sporting events

• Special events

• Concerts / Parades

• Local Council Work Sites

• Crowd control

Cheapest Temporary Fence -14 microns pre-galvanized silver painted
Design	New Zealand
Made	China
Specification
Height	2000mm
Width	2200mm
Pipes	OD 32mm x 1.20mm
Infill mesh	60mm x 150mm
Diameter	3.00mm
Standard	AS&NZS 4687-2007
Packing	Bulk Load or packing in metal pallet
20gp load panels	320 pieces temporary fencing panels only
20 set load set	300 set ( 1pcs panel+1pcs foot +1pcs clamp)
40hc load panels	800 pieces temporary fencing panels only
40hc load set	690 sets( 1pcs panel+1pcs foot +1pcs clamp)
Weight of panel	12.00kg
Advantage	Have all functions of temporary fencing are with a cant beat cheapest price to suit less budget guys
Disadvantage	Too light duty ,pipes and wire are too weak,zinc layers is not too heavy
Service life	1 years -3 years
Colors	Silver right or electrostatic powder coated
Materials	Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES
Welding	Two sides of temporary fencing welded by worker hand welding GMAW
PRICE

Economist Temporary Fence -14 microns per-galvanized
Design	Australia
Made	China
Specification
Height	2100mm
Width	2400mm
Pipes	OD 32mm x 1.40mm
Infill mesh	60mm x 150mm
Diameter	3.00mm
Standard	AS&NZS 4687-2007
Packing	Bulk Load or packing in metal pallet
20gp load panels	258 pieces temporary fencing panels only
20 set load set	250 set ( 1pcs panel+1pcs foot +1pcs clamp)
40hc load panels	710 pieces temporary fencing panels only
40hc load set	560 sets( 1pcs panel+1pcs foot +1pcs clamp)
Weight of panel	14.50kg
Advantage	Suit for private construction owner buy it for a middle term using also good for sale to local guys
Disadvantage	Too light duty ,pipes and wire are too weak,zinc layers is not too heavy easy to broken
Service life	1 years -3 years
Colors	Silver right or electrostatic powder coated
Materials	Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES
Welding	Two sides of temporary fencing welded by worker hand welding GMAW
PRICE

Budget Temporary Fence -14 microns per-galvanized
Design	Australia
Made	China
Specification
Height	2100mm
Width	2400mm
Pipes	OD 32mm x 1.5
Infill mesh	60mm x 150mm
Diameter	3.5
Standard	AS&NZS 4687-2007
Packing	Bulk Load or packing in metal pallet
20gp load panels	258 pieces temporary fencing panels only
20 set load set	250 set ( 1pcs panel+1pcs foot +1pcs clamp)
40hc load panels	710 pieces temporary fencing panels only
40hc load set	560 sets( 1pcs panel+1pcs foot +1pcs clamp)
Weight of panel	17.00kg
Advantage	The one are a middle quality one,suit both of sale and hire business
Disadvantage	light duty ,pipes and wire are too weak,zinc layers is not too heavy easy to broken
Service life	1 years -3 years
Colors	Silver right or electrostatic powder coated
Materials	Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES
Welding	Two sides of temporary fencing welded by worker hand welding GMAW
PRICE

Standard 1.80-3.80 or 2.0-4.0 version Temporary Fence --14 microns per-galvanized
Design	Australia
Made	China
Specification
Height	2100mm
Width	2400mm
Pipes	OD 32mm x 1.8mm or OD 32 x 2.00mm
Infill mesh	60mm x 150mm
Diameter	3.8mm
Standard	AS&NZS 4687-2007
Packing	Bulk Load or packing in metal pallet
20gp load panels	258 pieces temporary fencing panels only
20 set load set	250 set ( 1pcs panel+1pcs foot +1pcs clamp)
40hc load panels	710 pieces temporary fencing panels only
40hc load set	560 sets( 1pcs panel+1pcs foot +1pcs clamp)
Weight of panel	20.00kg
Advantage	Heavy duty starter the one you saw anywhere in Australia and New Zealand good for hire or sale professional looking
Disadvantage	Easy to rusting zinc layer light 14 microns
Service life	2 years -3 years
Colors	Silver right or electrostatic powder coated
Materials	Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES
Welding	Two sides of temporary fencing welded by worker hand welding GMAW
PRICE

Standard 1.80-3.80 or 2.0-4.0 version Temporary Fence -42 microns per-galvanized
Design	Australia
Made	China
Specification
Height	2100mm
Width	2400mm
Pipes	OD 32mm x 1.8mm or OD 32 x 2.00mm
Infill mesh	60mm x 150mm
Diameter	3.8mm or 4.00mm
Standard	AS&NZS 4687-2007
Packing	Bulk Load or packing in metal pallet
20gp load panels	258 pieces temporary fencing panels only
20 set load set	250 set ( 1pcs panel+1pcs foot +1pcs clamp)
40hc load panels	710 pieces temporary fencing panels only
40hc load set	560 sets( 1pcs panel+1pcs foot +1pcs clamp)
Weight of panel	20.00kg
Advantage	Hot dipped galvanized is good Traditional standard temporary fence in Australia and New Zealand good quality 42 microns hot dipped enough to fix all problem even in salt spray
Disadvantage	Infill mesh are not full hot dipped galvanized maybe rusting in future
Service life	2-5 years
Colors	Silver right or electrostatic powder coated
Materials	Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES
Welding	Two sides of temporary fencing welded by worker hand welding GMAW
PRICE

Standard 1.80-3.80 or 2.0-4.0 version Temporary Fence -84 microns full hot dipped galvanized
Design	Australia
Made	China
Specification
Height	2100mm
Width	2400mm
Pipes	OD 32mm x 1.8mm or OD 32mm x 2.00mm
Infill mesh	60mm x 150mm
Diameter	3.8mm
Standard	AS&NZS 4687-2007
Packing	Bulk Load or packing in metal pallet
20gp load panels	258 pieces temporary fencing panels only
20 set load set	250 set ( 1pcs panel+1pcs foot +1pcs clamp)
40hc load panels	710 pieces temporary fencing panels only
40hc load set	560 sets( 1pcs panel+1pcs foot +1pcs clamp)
Weight of panel	20.00kg
Advantage	Never Rusting heavy duty design
Disadvantage	Infill mesh are not full hot dipped galvanized maybe rusting in future
Service life	7-20 years
Colors	Silver right or electrostatic powder coated
Materials	Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES
Welding	Two sides of temporary fencing welded by worker hand welding GMAW
PRICE

Temporary Fencing Clamp-100TYPE
	Thickness	4.00mm
	Center distance	100mm ( pipes center to center) /OVERALL LENGTH120MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.45kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-90TYPE
	Thickness	4.00mm
	Center distance	90mm ( pipes center to center) /OVERALL LENGTH 110MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.40kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-80TYPE
	Thickness	4.00mm
	Center distance	80mm ( pipes center to center) /OVERALL LENGTH 100MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns ,42 microns hot dipped galvanized electrostatic powder coated
	Application	Secured Temporary Fence panels ,and Bracket ,Stay ,Gate
	Weight	0.35kg /set 2 pairs included big caps bolt and nuts

Top Fence co focused on manufacturing premium temporary fencing kit at a cost efficient rate covered with temporary fencing panels HDPE foot as well clamp system ,temporary fencing bracket ,temporary fencing gates etc, Annual we manufactured at least 50000 piece temporary fencing sold well in australia market such as brisbane ,Melbourne ,Perth ,Fremental .The products we manufactured adopt to AS 4687-2007 Standard Required .For sake of saving laborforce cost we imported welding robots from germany to eliminate the procedure not necessary to operate by workers so enable us always can pass a competitive rate .We serve more than 200 client in Australia ,among of them there are 20 regular long term clients what we achieved is casue we build complete after sale service and quality control system,our inspectors are through yearly professional training who help us to win a good repuation in local Australia .Top Fence take customers accurate requirements of market as key point of mutual profit and business success.Adquate market investigation made us to reserach and develop the temporary fencing to meet any group client requirments such as Standard Temporary Fence Classfied 14 microns /42 microns zinc layer ,Economic Temporary Fence etc
