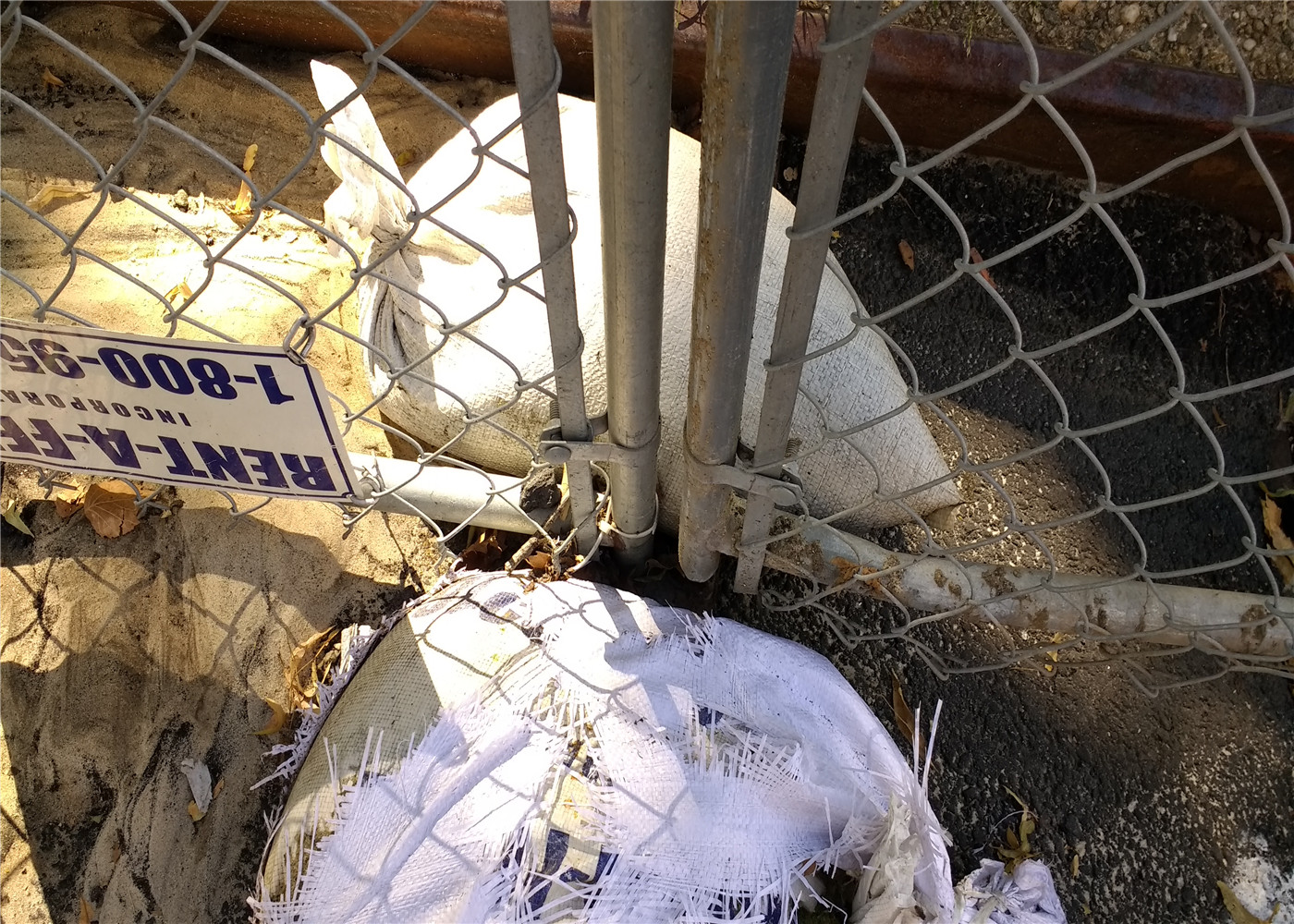

1.Chain Link Temporary fence is also known as Temporary fencing, temporary fence panels,
portable fence, Temp fence,temp fencing and mobile fence.It is
consist of chain link panel, round tube frame, plastic feet, stays
and clamps.This kind of fence has a superior structure, the
globality, mobility and environmental suitability is very good.
2.Common product specification:
Material
| low carbon steel wire, Q195 |
| carbon steel pipe, Q235 |
| US Standard Specification | Wire diameter:2.7mm Mesh opening:58x58mm,60mm*60mm,50mm*50mm Frame pipe:32mm O.D.33.4mmO,D Pipe thickness:2.0mm--3.0mm HXL:6'*10 |
Surface finish (Hot dipped galvanising) | Wire zinc coating About 200g/m2(28 micron) Pipe zinc coating About 300g/m2(42 micron) |
| Fence base | Hot dipped galvanising,sizes are suit to pipe diameter. |
| Base feet | 762mm*460mm,customerized colors |
| Package | On steel pallet |
3. Chain link fence features:
1).It can quickly and easily be installed, without the need to
disturb the surface area by digging holes or laying foundations.
2).Weather resistant and durable, and will last much longer; The
temporary fences are light and easy to handle, while being strong
and robust at the same time;
3).The feet are removable which makes transportation and storage
much easier and more efficient
4).Easy to Erect - four metres a minute
Light and easy to handle
Create a gate at any point on the perimeter
Economical temp fence - can be used time after time
Delivered accompanied by fork lift for easy distribution
Constructed from heavy gauge galvanized tube and welded mesh infill
4.Construction chain link fence productive process:
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire
weave---cut the corners of the mesh---Pre hot dip galvanized pipes
welded—polish the welds—paint anti-rust epoxy—spray sliver powder
coat on each welds—stacking—packaging
