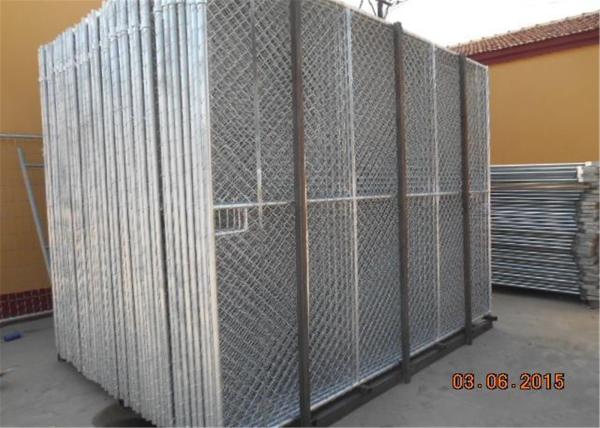

    Pre - Galvanized Pipes 14 Microns Portable Chain Link Fence Panels

    Ask Lasest Price
    Brand Name : top fence
    Model Number : chain link wire temporary construction fence panels
    Certification : ISO
    Price : 29.88 -46.88usd
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 pcs per year
    Delivery Time : 14 days
    • Product Details
    • Company Profile

    Pre - Galvanized Pipes 14 Microns Portable Chain Link Fence Panels

    4'x12' chain link temporary fence 1⅝"(42mm) HDG pipes x 16ga wall thick spacing 63mm x 63mm x 2.4mm diameter


    TOP FENCE co temporary chain link fence height range from 4ft to 8ft and width from 8ft to 14ft as a standard more appealing construction fence panels are 6'x12' and 8'x12'


    HeightWidth
    6ft (1830mm)10ft(3050mm)
    6ft(1830mm)12ft(3660mm)
    8ft(2440mm)10ft(3050mm)
    6ft(1830mm)14ft(4270mm)
    6ft(1830mm)8ft (2440mm)

    Frame of tubing chain link fence panels 42mm outer and brace 35mm with 16ga thickness of wall incoperate with a 2.375 " 60mm x 60mm x 2.00 diameter it is smart design for installation fast.


    Outer frame1 -5/8” (42mm) x 16 gauge ( 1.29mm wall thickness)
    Brace1 -3/8” (35mm) x16 gauge ( 1.29mm wall thickness)
    Brace available CROSS ,VERTICAL ONLY ,HORIZONTAL ONLY
    Chain Mesh2 -3/8” (60mm x 60mm x 12.5 gauge (2.00mm)

    Steel block middle pipes pipes are punched then insert upright fully welding at all 360° through throw drop testing from 5 meter height no any broken.available 36" and 30" length base as per you requirements


    Length36 “ (914mm)
    Width13-3/4”(350mm)
    Height8” (203.2mm)
    Frame1 -3/8 “ (35mm) or 1-5/8”(42mm)

    Length30”(760mm)
    Width18”(460mm)
    Height8” (203.2mm)
    Frame1 -3/8 “ (35mm) or 1-5/8”(42mm)

    Pre - Galvanized Pipes 14 Microns Portable Chain Link Fence PanelsPre - Galvanized Pipes 14 Microns Portable Chain Link Fence Panels
