AU temporary fence 4687-2007 Standard Approved 2100mm x2400mm OD 32
pipes x 1.80mm tubing temp fence panels
TOP FENCE CO.LTD is one of largest temporary fence factory in china
,we supplied all in standard and meet and exceed you expected ,all
temp fence panels ,and clamp ,base meet AS4687-2007 welcome call us
86-18631889222,Australia Temporary Fence consist of one welded panel , one
plactic feet and one galvanzied clip .
Temporary Fence panels according to hot dipped galvanized thickness
can be available 14 microns ,28 microns ,42 microns ,84 microns
,heaviers zinc thickness means the service life and anti Anticorrosion ability.Moreover from the finished can be classfied hot dipped galvanized
,Interpon powder coating etc
Secret of temporary fencing panels in china supplied
As a elder temporary fence manufacturer in china ,we also know
hidden rule of temporary fence deal when you deal with chinese .
OD32mm x2.00mm Mesh opening 60mm x 150mm x 4.00mm most of temporary
fence manufactuers will do OD 32mm x 1.80mm and 60mm x 150mm x
3.80mm ,I have to be honest to eveyone ,previously we also do same
things until one of customers from meblbourne inform me this is not
acceptance then deduct 2x40hc container temporary fencing panels
cost ,then we know products have to be perfect or just like time
bomb
so TOP FENCE CO now always provided two quotes of temporary fencing
when client ask for a quotation
2100mm*2400mm*60mmx150mmxOD32mmx1.80mmx3.80mm temporary fence
panels
2100mm*2400mm*60mmx150mmxOD32mmx2.00mmx4.00mm temporary fence
panels
This is only one secret of temporary fencing panels in others
content i will tlak more about it to help you how to choose a
temporary fence in a affordable rate but no cheat by others
1. quickly and easily be installed, do not need to disturb the
surface area by digging holes or laying foundation
2. Beautiful looking,smooth and neat surface,no color fading
3. High security ,corrosion proof ,anti-aging
4. Environmentally friendly
5. comfortable touch
6. competitive price
Specification for recommend
Material | Hot dipped wire and pope |
Finish | Hot Dipped Galvanised to Australian Standard – 42 Microns |
Panel Size | 2400mm(L) x 2100mm(H) |
Frame | 32mm,38mm,40mm,42mm O.D. |
Wire Diameter | 3-5mm |
Infill Mesh | 100 x 50mm,100 x 75mm,150 x 60mm,etc |
Accessories | hot dipped galvanzied clip+blow molding feet |
Different specifications are available according to customers'
special inquiry or detailed drawings.
Cheapest Temporary Fence -14 microns pre-galvanized silver painted |
Design | New Zealand |
Made | China |
Specification |
Height | 2000mm |
Width | 2200mm |
Pipes | OD 32mm x 1.20mm |
Infill mesh | 60mm x 150mm |
Diameter | 3.00mm |
Standard | AS&NZS 4687-2007 |
Packing | Bulk Load or packing in metal pallet |
20gp load panels | 320 pieces temporary fencing panels only |
20 set load set | 300 set ( 1pcs panel+1pcs foot +1pcs clamp) |
40hc load panels | 800 pieces temporary fencing panels only |
40hc load set | 690 sets( 1pcs panel+1pcs foot +1pcs clamp) |
Weight of panel | 12.00kg |
Advantage | Have all functions of temporary fencing are with a cant beat
cheapest
price to suit less budget guys |
Disadvantage | Too light duty ,pipes and wire are too weak,zinc layers is not too
heavy |
Service life | 1 years -3 years |
Colors | Silver right or electrostatic powder coated |
Materials | Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES |
Welding | Two sides of temporary fencing welded by worker hand welding GMAW |
|
|
Economist Temporary Fence -14 microns per-galvanized |
Design | Australia |
Made | China |
Specification |
Height | 2100mm |
Width | 2400mm |
Pipes | OD 32mm x 1.40mm |
Infill mesh | 60mm x 150mm |
Diameter | 3.00mm |
Standard | AS&NZS 4687-2007 |
Packing | Bulk Load or packing in metal pallet |
20gp load panels | 258 pieces temporary fencing panels only |
20 set load set | 250 set ( 1pcs panel+1pcs foot +1pcs clamp) |
40hc load panels | 710 pieces temporary fencing panels only |
40hc load set | 560 sets( 1pcs panel+1pcs foot +1pcs clamp) |
Weight of panel | 14.50kg |
Advantage | Suit for private construction owner buy it for a middle term using
also
good for sale to local guys |
Disadvantage | Too light duty ,pipes and wire are too weak,zinc layers is not too
heavy easy to broken |
Service life | 1 years -3 years |
Colors | Silver right or electrostatic powder coated |
Materials | Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES |
Welding | Two sides of temporary fencing welded by worker hand welding GMAW |
PRICE |
|
Budget Temporary Fence -14 microns per-galvanized |
Design | Australia |
Made | China |
Specification |
Height | 2100mm |
Width | 2400mm |
Pipes | OD 32mm x 1.5 |
Infill mesh | 60mm x 150mm |
Diameter | 3.5 |
Standard | AS&NZS 4687-2007 |
Packing | Bulk Load or packing in metal pallet |
20gp load panels | 258 pieces temporary fencing panels only |
20 set load set | 250 set ( 1pcs panel+1pcs foot +1pcs clamp) |
40hc load panels | 710 pieces temporary fencing panels only |
40hc load set | 560 sets( 1pcs panel+1pcs foot +1pcs clamp) |
Weight of panel | 17.00kg |
Advantage | The one are a middle quality one,suit both of sale and hire
business |
Disadvantage | light duty ,pipes and wire are too weak,zinc layers is not too
heavy easy to broken |
Service life | 1 years -3 years |
Colors | Silver right or electrostatic powder coated |
Materials | Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES |
Welding | Two sides of temporary fencing welded by worker hand welding GMAW |
PRICE |
|
Standard 1.80-3.80 or 2.0-4.0 version Temporary Fence --14 microns
per-galvanized |
Design | Australia |
Made | China |
Specification |
Height | 2100mm |
Width | 2400mm |
Pipes | OD 32mm x 1.8mm or OD 32 x 2.00mm |
Infill mesh | 60mm x 150mm |
Diameter | 3.8mm |
Standard | AS&NZS 4687-2007 |
Packing | Bulk Load or packing in metal pallet |
20gp load panels | 258 pieces temporary fencing panels only |
20 set load set | 250 set ( 1pcs panel+1pcs foot +1pcs clamp) |
40hc load panels | 710 pieces temporary fencing panels only |
40hc load set | 560 sets( 1pcs panel+1pcs foot +1pcs clamp) |
Weight of panel | 20.00kg |
Advantage | Heavy duty starter the one you saw anywhere in Australia and New
Zealand good for
hire or sale professional looking |
Disadvantage | Easy to rusting zinc layer light 14 microns |
Service life | 2 years -3 years |
Colors | Silver right or electrostatic powder coated |
Materials | Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES |
Welding | Two sides of temporary fencing welded by worker hand welding GMAW |
PRICE |
|
Standard 1.80-3.80 or 2.0-4.0 version Temporary Fence -42 microns
per-galvanized |
Design | Australia |
Made | China |
Specification |
Height | 2100mm |
Width | 2400mm |
Pipes | OD 32mm x 1.8mm or OD 32 x 2.00mm |
Infill mesh | 60mm x 150mm |
Diameter | 3.8mm or 4.00mm |
Standard | AS&NZS 4687-2007 |
Packing | Bulk Load or packing in metal pallet |
20gp load panels | 258 pieces temporary fencing panels only |
20 set load set | 250 set ( 1pcs panel+1pcs foot +1pcs clamp) |
40hc load panels | 710 pieces temporary fencing panels only |
40hc load set | 560 sets( 1pcs panel+1pcs foot +1pcs clamp) |
Weight of panel | 20.00kg |
Advantage | Hot dipped galvanized is good Traditional standard temporary fence
in
Australia and New Zealand good quality
42 microns hot dipped enough to fix all problem even in salt spray |
Disadvantage | Infill mesh are not full hot dipped galvanized maybe rusting in
future |
Service life | 2-5 years |
Colors | Silver right or electrostatic powder coated |
Materials | Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES |
Welding | Two sides of temporary fencing welded by worker hand welding GMAW |
PRICE |
|
Standard 1.80-3.80 or 2.0-4.0 version Temporary Fence -84 microns
full hot dipped galvanized |
Design | Australia |
Made | China |
Specification |
Height | 2100mm |
Width | 2400mm |
Pipes | OD 32mm x 1.8mm or OD 32mm x 2.00mm |
Infill mesh | 60mm x 150mm |
Diameter | 3.8mm |
Standard | AS&NZS 4687-2007 |
Packing | Bulk Load or packing in metal pallet |
20gp load panels | 258 pieces temporary fencing panels only |
20 set load set | 250 set ( 1pcs panel+1pcs foot +1pcs clamp) |
40hc load panels | 710 pieces temporary fencing panels only |
40hc load set | 560 sets( 1pcs panel+1pcs foot +1pcs clamp) |
Weight of panel | 20.00kg |
Advantage | Never Rusting heavy duty design |
Disadvantage | Infill mesh are not full hot dipped galvanized maybe rusting in
future |
Service life | 7-20 years |
Colors | Silver right or electrostatic powder coated |
Materials | Q235 Q195 PEE-GALVANIZED STEEL PIPES ROLLED PIPES |
Welding | Two sides of temporary fencing welded by worker hand welding GMAW |
PRICE |
|

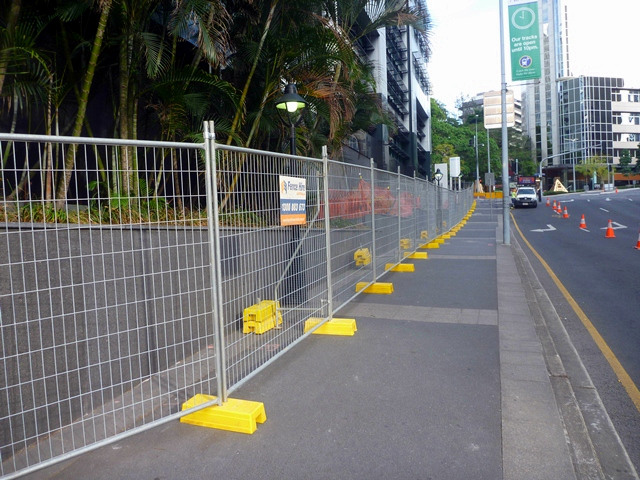

Application
1. Temporary fence to secure construction sites and private
property.
2. Temporary fencing of residential housing sites.
3 Temporary fencing and crowd control barriers for major public.
Events, sports, concerts, festivals, gatherings etc.
4 Temporary safety fencing for swimming pools
Features
◆ is convenient for installation and disassembly
◆ would not disturb the surface area by digging holes or laying
foundations
◆ long life and regular use
◆ neat and tidy
