AS4687-2007 standard 2100mm x 2400mm 42 microns zinc layer
temporary fencing panels
| Holder material | Made of plastic which is made from High density polyethylene |
| Applications | Widely used for fence post in Construction,building,events etc |
Characteristics | Easy and safe for transport. Portable and durable. Entire concrete is encased in plastic,and the concrete will never
fall out UV5 for sun/weather protection,not fade,can last more than 5 years. |
| Base Dimension | 600mm long,220mm wide,150mm high |
| Thickness of the holder | 2.5mm |
| Hole diameters | Suit to 32mm,42mm,48mm O.D fence post. |
| Total Weight with concrete | About 26 kgs/piece |
| Base colors | Red,orange,blue,white,yellow,green are available. |
| Samples | Sample is free |
| Other service | OEM/ODM are ok,your companyname or logo can be printed on it. |
Temporary fencing plastic based:
Made of plastic which is made from polypropylence.
Color:orange,red,blue,yellow for your choice.
Hole size available:32mm,40mm,60mm.
Size:560x245x130mm,600x220x150mm,600x220x100mm.
Temporary fencing clamp
A good quality temporary fencing clamp that will hold the pipe in
place,even under extreme pressure
These clamps are hot dip galvanised and meet Australia standard.
Temporary fencing brace
Stay's OD is the same as frame OD.
Generally speaking 3-5 panels need one brace,and one brace equiped
with one clamp and 1-3 based.
Panel size(mm): 1800(H)x2100(L),1800(H)x2400(L),2100(H)x2400(L)
Opening (mm) :50x100/50x150/50x200/60*150/75x150
Wire Dia(mm): 3/3.5/4 mm
Panel Frame(mm) Thickness:1.2,1.5,1.6,1.8,2.0
Fence stay:1500mm,1800mm high
Fence feet Plastic feet:600*220*150 or steel feet
Fence clamp Pitch: 100 or 75
Finishing of fence hot-dipped galvanized then paint, galvanized
then Powder coated
Note: The fence can be customized according to your required if
above specification is not satisfied with you.
The most popular specification
| Panel Size: | 2400mm(L) x 2100mm(H) |
| Frame: | 32mm O.D. pipes |
| Infill Mesh: | 4mm horizontal, 4mm vertical
150mm x 60mm spacing |
| Weight: | 24kgs |
| Finish: | Hot Dipped Galvanized conforming to Australian Standard - 42
Microns |
| Accessory | Plastic feet & clamp & stay(optional) |
Other wire diameters are also available upon customers’ specific
requirements.
There are many color options of plastic feet for you to choose,
like red, orange, pink, etc.

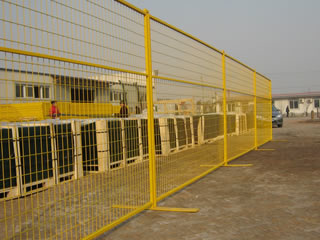

Temporary Fence-Style A
The combination of the temporary fence panel in conjunction with
the plastic and concrete-filled foot and the galvanised clamp
provides a stable, secure and effective and complete temporary
fence solution. The temporary fencing panels have a rigid mesh
infill, which cannot be easily scaled or climbed and the panels and
clamps are fully galvanised, ensuring long life and use.
| Popular Size |
| Wire Diameter | 3.00-5.00mm |
| Mesh Opening | 60 x 150mm,50 x 100mm,75x100mm, 75x75mm, 50x50mm & 100 x 300mm |
| H x W (mm) | 2100x2400, 1800x2400, 1800x2500, 2100x2900, 2100x3300 |
| Frame(mm) | 25 OD, 32 OD, 38 OD,42 OD, 48 OD |
| Special size is available |
| |
 |  |
| Temporary Fence-Style A 001 | Temporary Fence-Style A 002 |

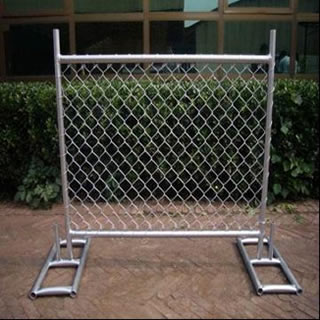

Temporary Fence-Style B
| Popular Size |
| Wire Diameter | 14gauge,12-1/2 gauge,11gauge |
| Mesh Opening | 2' 'x 2'', 2-1/2'' x 2-1/2'' & 3'' x 3'' |
| Height | 4ft,6ft & 8ft |
| Width | 8ft,10ft & 12ft |
| Frame | 1'' , 5/4'',3/2'' & 13/8'' |
| Special size is available |
| |
 |  |
| Temporary Fence-Style B 001 | Temporary Fence-StyleB 002 |
Temporary Fence-Style C
| Popular Size |
| Wire Diameter | 3.5-5mm |
| Mesh Opening | 50x100mm( 2' 'x 2'' ) |
| Height | 4ft,6ft & 8ft |
| Width | 8 - 10ft |
| Frame & Middle bar | 20x20mm,25x25mm & 30x30mm |
| Base | 863x89x7mm |
| Special size is available |
| |
 |  |
| Temporary Fence-Style C 001 | Temporary Fence-Style C 002 |
| Q: | 1. How can I repair galvanizing that has been cut or damaged? |
| A: | Most repairs can be touched up by using paints containing zinc
dust, sprayed zinc or zinc based solder. |
| Q: | 2. Can galvanized iron or steel be painted? |
| A: | Yes, using proven paint systems including a pretreatment primer or
self primer. |
| Q: | 3. Does hot dip galvanizing affect the weight of my material? |
| A: | Yes, the coating will add up to 10% additional weight. |
| Q: | 4. Does your company can produce other specification? |
| A: | Yes, we can manufacture the fence according to customer's request. |
| Q: | 5. How long warranty does your company can provided for fence
product? |
| A: | Our product can last for 20 years at least. Usually we will provide
3-5 years guarantee. |
| Q: | 6. What about the delivery time? |
| A: | About 30 days, but will depends on order quantity. |
Our Company
Commenced in the year 1997, TOP FENCE CO.LTD is carved a niche in
the market. Headquarter of our company is situated at
Anping,Hebei(China).
We are the leading manufacturer, exporter, supplier, distributor,
wholesaler, retailer and supplier of Wire Netting, Fencing Systems,
Commercial Wire, Industrial Products and many more.
All the products are provided by market leading prices. These
products are well tested on various quality parameters. We assure
to provide these products in given time frame.
We are also rendering Barbed Wire Fencing, Chain Link Fencing,
Welded Mesh Frame Fencing, Concertina Coil Fencing and many more.
